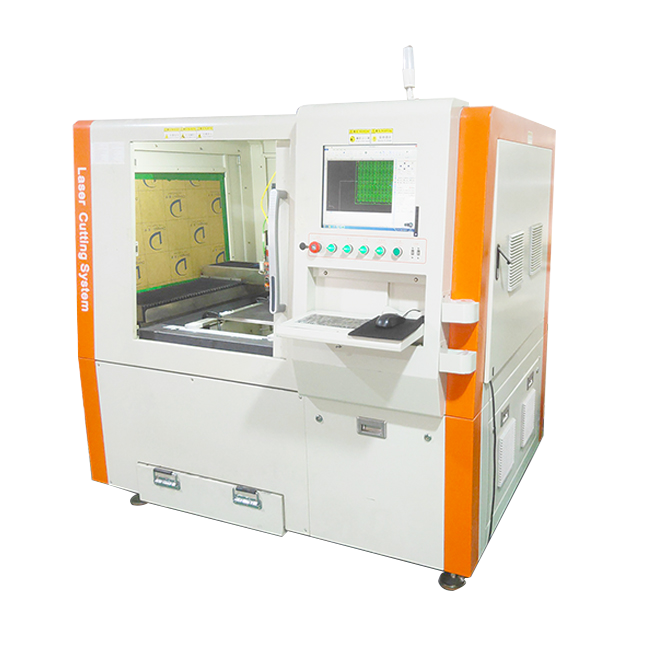

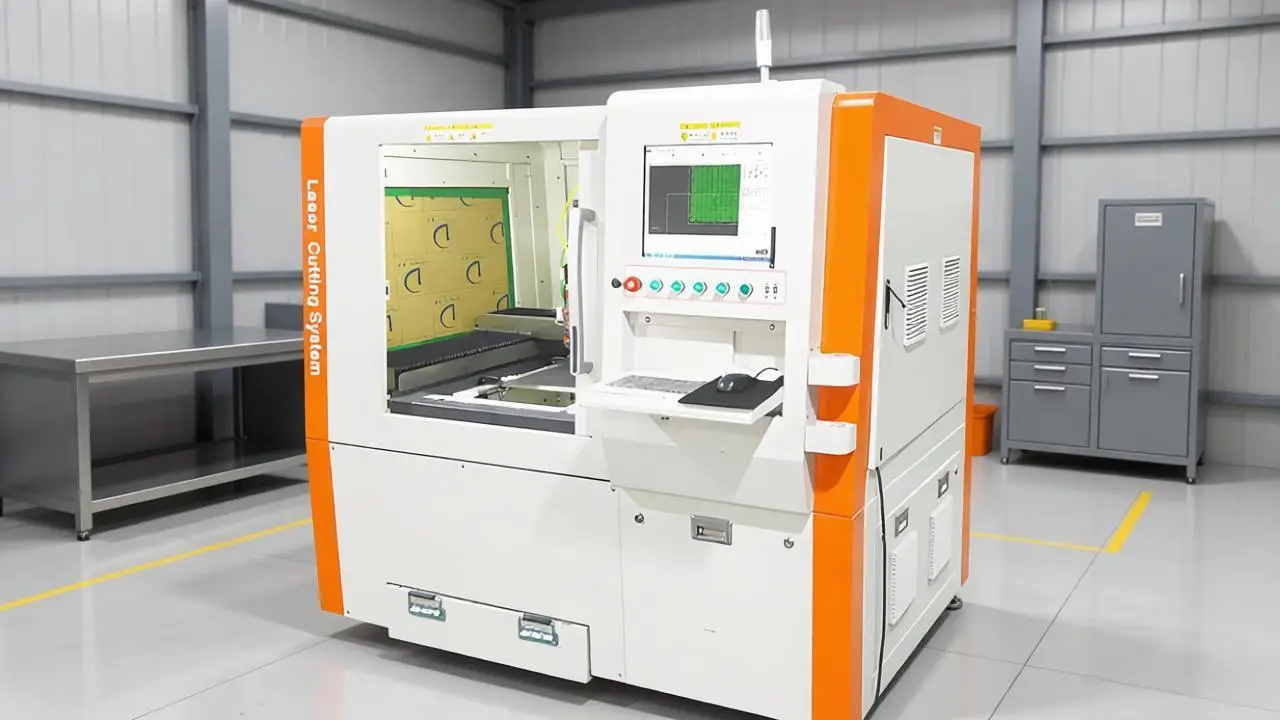

Medical Laser Drilling & Cutting Integrated Machine
Addressing the three major pain points of medical device processing - inadequate precision, contamination risks, and cumbersome procedures - the household laser medical laser drilling and cutting machine, leveraging 29 years of precision laser technology accumulation, integrates imported core components with medical - grade sterile processing techniques. It achieves integrated drilling and cutting of medical devices, offering micron - level precision controllability, burr - free and damage - free results, and full sterile adaptability. It provides a safe, efficient, and compliant one - stop solution for medical consumables and precision instrument manufacturing, thereby facilitating the upgrading of the medical manufacturing industry.
Product Advantages
• Support for minimum aperture of 3μm
• Repeatable positioning accuracy of ±1μm
• Capable of continuous mass production 7×24 hours a day
Product Application
Medical Military Industry
Precision filter mesh, microstraws, porous metal foil, medical catheter
Aviation & Aerospace
Cooling holes, positioning holes, and thin-walled heat shields for turbine components
Automotive & New Energy
GDI fuel injection nozzle (multi-hole), oil control valve, battery tab cutting and punching
Sensors & Electronics
Sensor housing, acoustic components, breathable membranes, and blind holes
Product Advantages
Utilizing imported core components and combining 29 years of independent research and development experience, the system achieves a repeat positioning accuracy of ±0.001mm, with a minimum hole diameter of 0.003mm (3μm). The holes are regular in size and smooth on the walls, and the cutting line width is as low as 0.007mm. The system produces no burrs, carbonization, or stress damage, fully complying with the regulatory standards for medical device processing and meeting the production needs of high-end medical products
Innovatively integrating medical-grade laser drilling and precision cutting as dual core functions, it can achieve one-time completion of drilling and cutting for products such as precision filters, medical catheters, osmotic pump tablets, and minimally invasive instruments, eliminating the need for switching between multiple devices and multiple process flows, reducing the risk of secondary contamination of components, significantly simplifying the medical production line process, and enhancing production efficiency
The entire machine adopts a sealed, dust-proof, and sterile design, equipped with a dedicated dust removal and purification device. The processing process is free of dust and consumable residue, avoiding contamination of medical devices. It is compatible with various medical-grade materials such as medical stainless steel, titanium alloy, medical plastic, and ceramic substrates. The processing process does not damage the material properties, ensuring the biocompatibility of the devices
Equipped with an imported laser that requires no maintenance for 7 years, the laser power is adjustable from 300W to 800W, with a maximum drilling speed of 100 holes per second and a cutting speed adjustable from 0 to 2000mm/min. The efficiency of group hole processing is more than four times higher than traditional processes, enabling the drilling of over 20,000 tablets per hour. The equipment operates continuously and stably for 7×24 hours, meeting the needs of large-scale production of medical devices
We support non-standard customization of medical devices, offering exclusive solutions tailored to customer needs, such as micro-holes, slanted holes, irregular holes, and irregular cuts. These solutions are compatible with various medical products, including precision filters, medical catheters, osmotic pump controlled-release tablets, minimally invasive instruments, and medical electrodes. From research and development to prototyping and mass production, we provide a one-stop solution to meet the diverse needs of medical manufacturing
